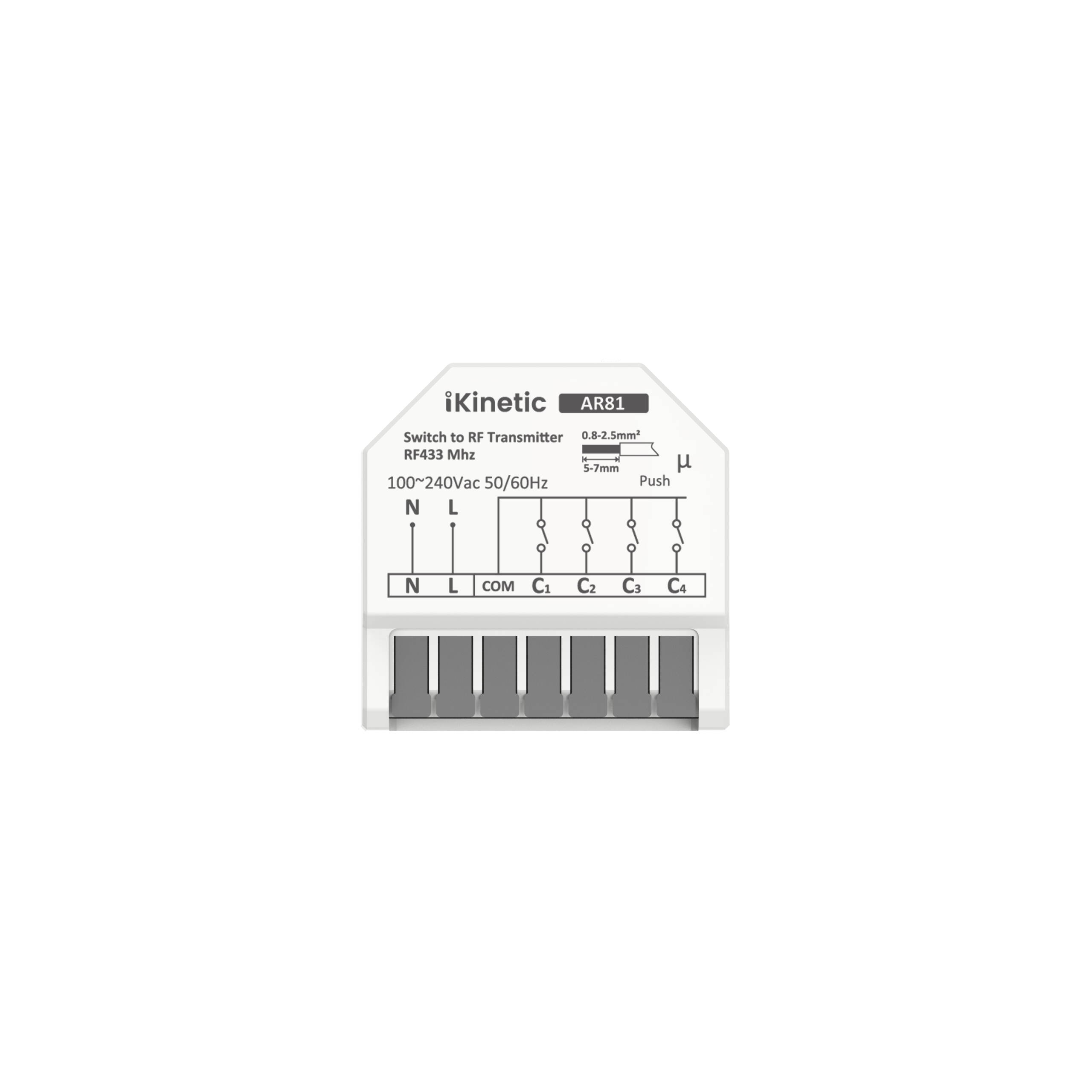

iKINETIC AR81 SERIES

Smart Motor Control:
AC Curtain Controller

Intelligent control for motorized roller shutters, blinds, and curtains. Supports precise 0-100% positioning (Smart versions) and traditional wired switch integration. Compact design for hidden installation.

Roller Shutter / Blinds
500W Motor Load
Position Calibration

Select Your Connectivity

AR81

Standard RF Motor Control

RF 433MHz Open/Stop/Close. Simple wireless operation.

Control Signal RF 433MHz
Motor Type AC 4-Wire
Max Load 500W (2.2A)
AR81-WF

Tuya WiFi + RF Curtain

App Percentage Control. Voice: "Open Blinds 50%".

Control Signal RF + Tuya WiFi
Features Timer / Schedule
Max Load 500W (2.2A)
AR81-MW

Matter WiFi + RF Curtain

Matter Curtain Driver. Apple Home / Google ready.

Control Signal RF + Matter WiFi
Compatibility HomeKit / Alexa
Max Load 500W (2.2A)

Engineering Highlights

Percentage Control

Smart calibration allows setting precise opening levels (e.g., 30% open) via App or Voice command.

Wired Interlock

Compatible with standard shutter switches (interlocked type) for manual Up/Stop/Down control.

Compact Size

Small footprint (48x48mm approx) fits easily into shutter boxes or deep wall junction boxes.

Safety Protection

Built-in run-time protection and overheat cut-off ensure safe operation for tubular motors.

Detailed Specifications

General Parameters (All Models)

Input Voltage 100-240Vac 50/60Hz
Motor Type AC Tubular Motor (4-Wire)
Max Current 2.2A / 3A Peak
Max Power 500W
Dimensions 48 x 47 x 22 mm
Housing Material PC Fire Retardant
IP Rating IP20
Installation Wall Box / Shutter Box
Working Temp -10°C to +45°C
Calibration Auto / Manual
Wiring L, N, M1 (Up), M2 (Down), S1, S2
Warranty 5 Years

Protocol Specifications

AR81

  • Type AC Motor Controller
  • Protocol RF 433MHz (Encrypted)
  • Pairing Kinetic Switch / Remote
  • Wired Switch Interlocked Only

AR81-WF

  • Protocol Tuya WiFi (2.4GHz)
  • WiFi Security WEP, WPA/WPA2/WPA3
  • Features Calibration, % Control
  • App Support Tuya Smart, Smart Life, Alexa, Google Home

AR81-MW

  • Protocol Matter over WiFi
  • WiFi Security WEP, WPA/WPA2/WPA3
  • Features Precision Position
  • Ecosystem Apple Home, Google Home, Alexa, SmartThings

* All smart receivers (WF/MW) also support RF 433MHz function.
* Matter version requires a compatible third-party border router/speaker.
