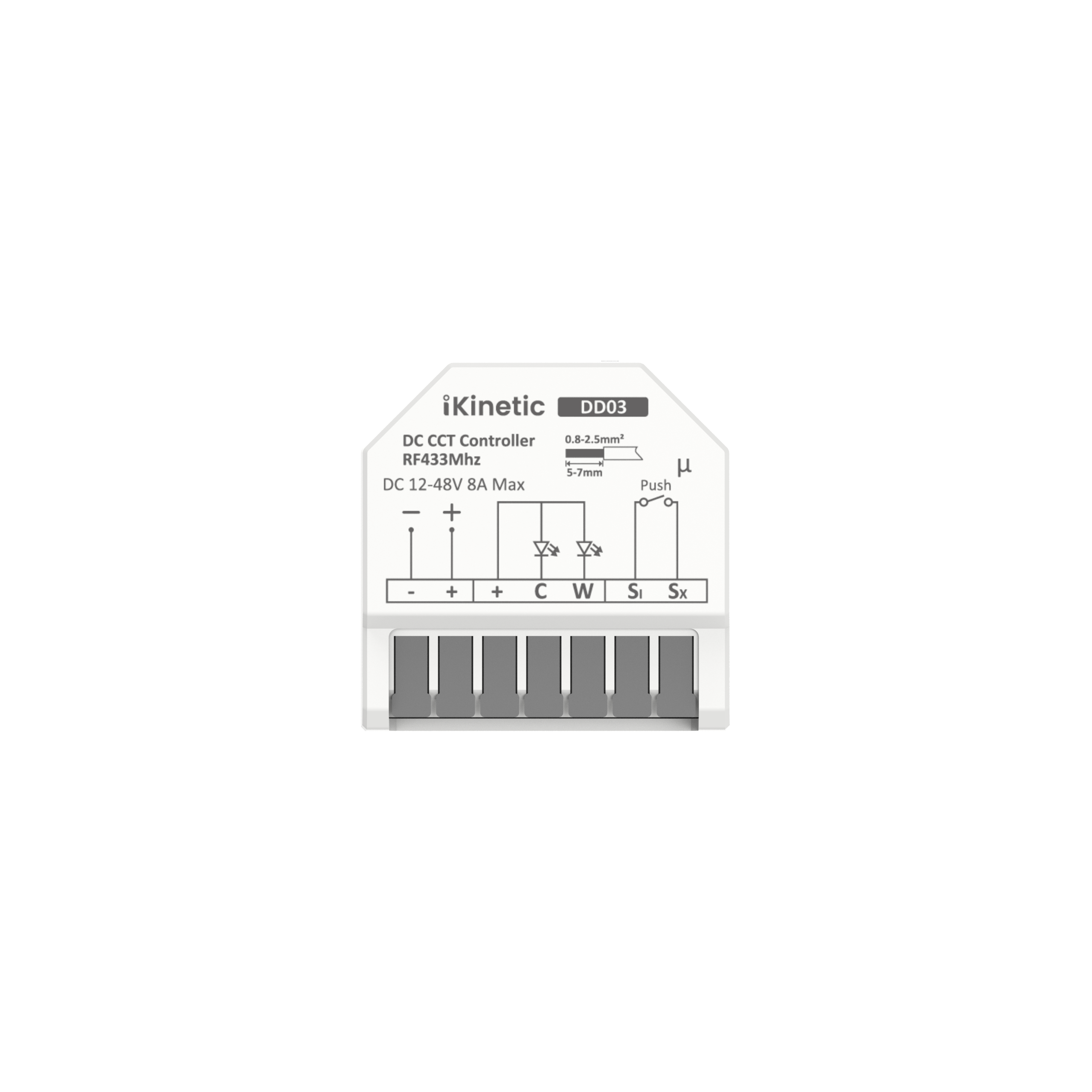

Precision CCT Control:
3-Wire DC Controller
Professional Tunable White control with high-capacity 8A output. Designed for 12V-48V DC LED strips, enabling seamless color temperature adjustment from 2700K to 6500K with logarithmic dimming.
Select Your Connectivity
Standard RF
Encrypted RF 433MHz. Simple, reliable local control.
Tuya WiFi + RF
Direct App control. Works with Alexa & Google Home.
Matter WiFi + RF
Ultimate compatibility. Apple, Google, Alexa & SmartThings.
Engineering Highlights
High Capacity 8A
Robust 8A output allows driving high-power CCT LED strips (up to 384W at 48V) for extended runs without signal amplifiers.
Tunable White
3-Wire control for dynamic color temperature adjustment from warm 2700K to cool 6500K, enhancing human-centric lighting.
Logarithmic Dimming
0.1-100% logarithmic dimming curve ensures smooth, natural brightness transitions that match the human eye's perception.
Wired Push Ready
Seamlessly integrates with standard push-button switches for manual on/off and dimming control alongside smart features.
Detailed Specifications
General Parameters (All Models)
Protocol Specifications
DD03
- Type CCT Receiver (3-Wire)
- Protocol RF 433MHz (Encrypted)
- Pairing iKinetic Kinetic Switches
- Wired Switch Push Button Support
DD03-WF
- Protocol Tuya WiFi (2.4GHz)
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- App Support Tuya Smart, Smart Life, Alexa, Google Home
DD03-MW
- Protocol Matter over WiFi
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- Ecosystem Apple Home, Google Home, Alexa, SmartThings
* All smart receivers (WF/MW) also support RF 433MHz function.
* Max load wattage depends on voltage (e.g., 12V@8A=96W, 48V@8A=384W).
