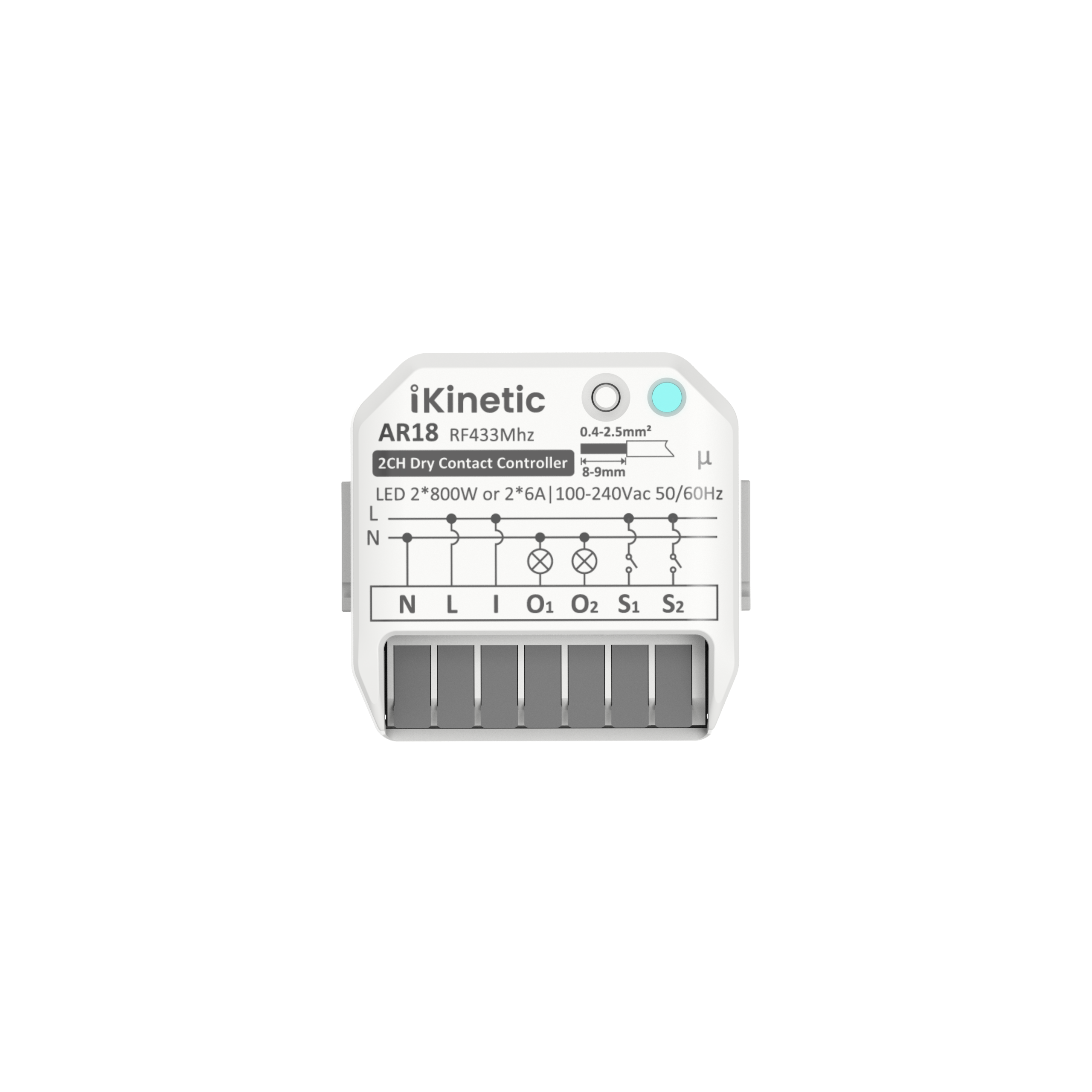

iKINETIC AR18 SERIES

2-Channel Volt-Free:
Dry Contact Controller

Double the flexibility. A compact 2-Channel Dry Contact controller that isolates power from control. Perfectly designed to independently switch two separate circuits, such as garage doors, gates, or dual DC LED loads.

2CH Dry Contact (I/O)
2-Gang Wired Support
2x 6A Max Load

Select Your Connectivity

AR18

Standard RF (2CH)

Encrypted RF 433MHz. Independent control for 2 zones.

Control Signal RF 433MHz
Wired Switch Supported (S1/S2)
Output 2x Dry Contact
AR18-WF

Tuya WiFi + RF (2CH)

Dual-channel App control. Smart automation for gates/DC loads.

Control Signal RF 433 + Tuya WiFi
Wired Switch Supported (S1/S2)
Output 2x Dry Contact
AR18-MW

Matter WiFi + RF (2CH)

2-Way Matter Control. Seamless integration with Apple/Google.

Control Signal RF 433 + Matter WiFi
Wired Switch Supported (S1/S2)
Output 2x Dry Contact

Engineering Highlights

Dual Dry Contact

2 separate channels with a common input (I). Ideal for dual gate systems or multiple low-voltage circuits.

Switch Box Ready

Standard 44mm footprint fits easily inside electrical switch boxes, hiding the technology behind the wall.

2x 6A High Load

Robust relays handle up to 6A per channel, allowing for versatile control of both AC and DC loads.

Screw-free Install

Features quick-connect push-fit terminals for tool-free, secure wiring, even in confined spaces.

Detailed Specifications

General Parameters (All Models)

Input Voltage 100-240Vac 50/60Hz
Output Type 2x Dry Contact (Volt-Free)
Max Current 6A * 2CH
Load Capacity 2x 800W @ 230Vac
Dimensions 44.3 x 49.9 x 20.6 mm
Housing Material UL 94-V0 PC
IP Rating IP20
Installation Switch Box / DIN Rail
Working Temp -20°C to +40°C
Ta / Tc Ta: 40°C / Tc: 85°C
Memory Capacity Max 10 Switches
Warranty 5 Years

Protocol Specifications

AR18

  • Type 2CH Dry Contact
  • Protocol RF 433MHz (Encrypted)
  • Pairing iKinetic Kinetic Switches
  • Wall Switch Compatible (S1/S2)

AR18-WF

  • Protocol Tuya WiFi (2.4GHz)
  • WiFi Security WEP, WPA/WPA2/WPA3
  • Frequency 2.400-2.480GHz
  • App Support Tuya Smart, Smart Life, Alexa, Google Home, Yandex

AR18-MW

  • Protocol Matter over WiFi
  • WiFi Security WEP, WPA/WPA2/WPA3
  • Frequency 2.400-2.480GHz
  • Ecosystem Apple Home, Google Home, Alexa, SmartThings, Tuya

* All smart receivers (WF/MW) also support RF 433MHz function.
* Matter version requires a compatible third-party border router/speaker.
