iKINETIC DD SERIES
DC 12V-48V PWM Dimmer:
DD01 & DD02
Professional constant voltage LED controllers. DD01 provides high-power 8A single-channel dimming. DD02 offers versatile 2x5A dual-channel control for CCT or double strips. Both feature 4KHz flicker-free PWM.
12-48V DC Input
Max 8A / 10A Output
In-Wall Mount
Select Your Model

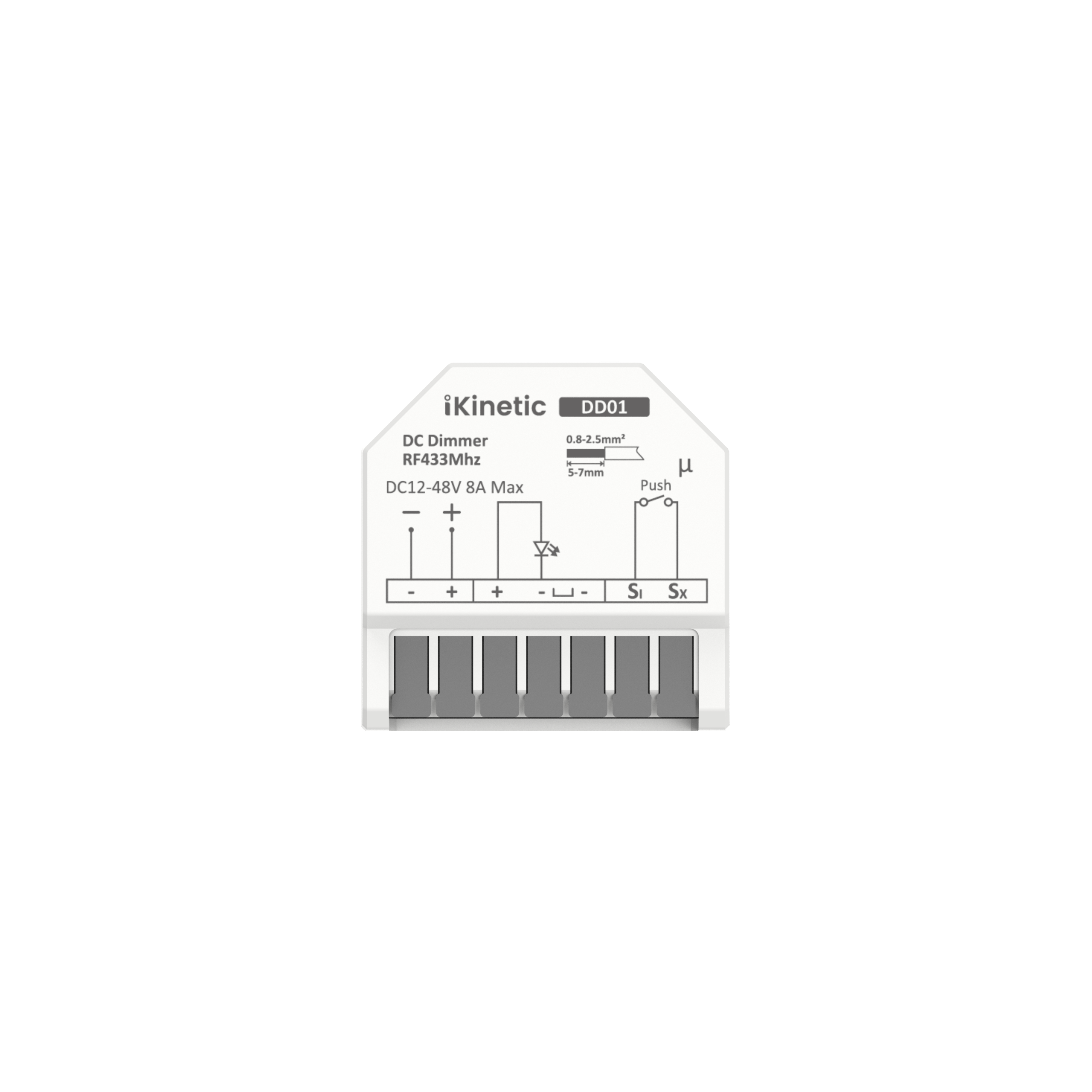

DD01 Series (Single Color)
Standard RF Dimmer
1 Channel. 8A High Current Output.
ControlRF 433MHz
Output1CH x 8A
TypeDimming Only
Tuya WiFi Dimmer
Smart App Control. Voice Dimming (8A).
ControlRF + Tuya WiFi
Output1CH x 8A
TypeSmart Dimming
Matter WiFi Dimmer
Matter Certified. 8A.
ControlRF + Matter WiFi
Output1CH x 8A
TypeMatter Dimming

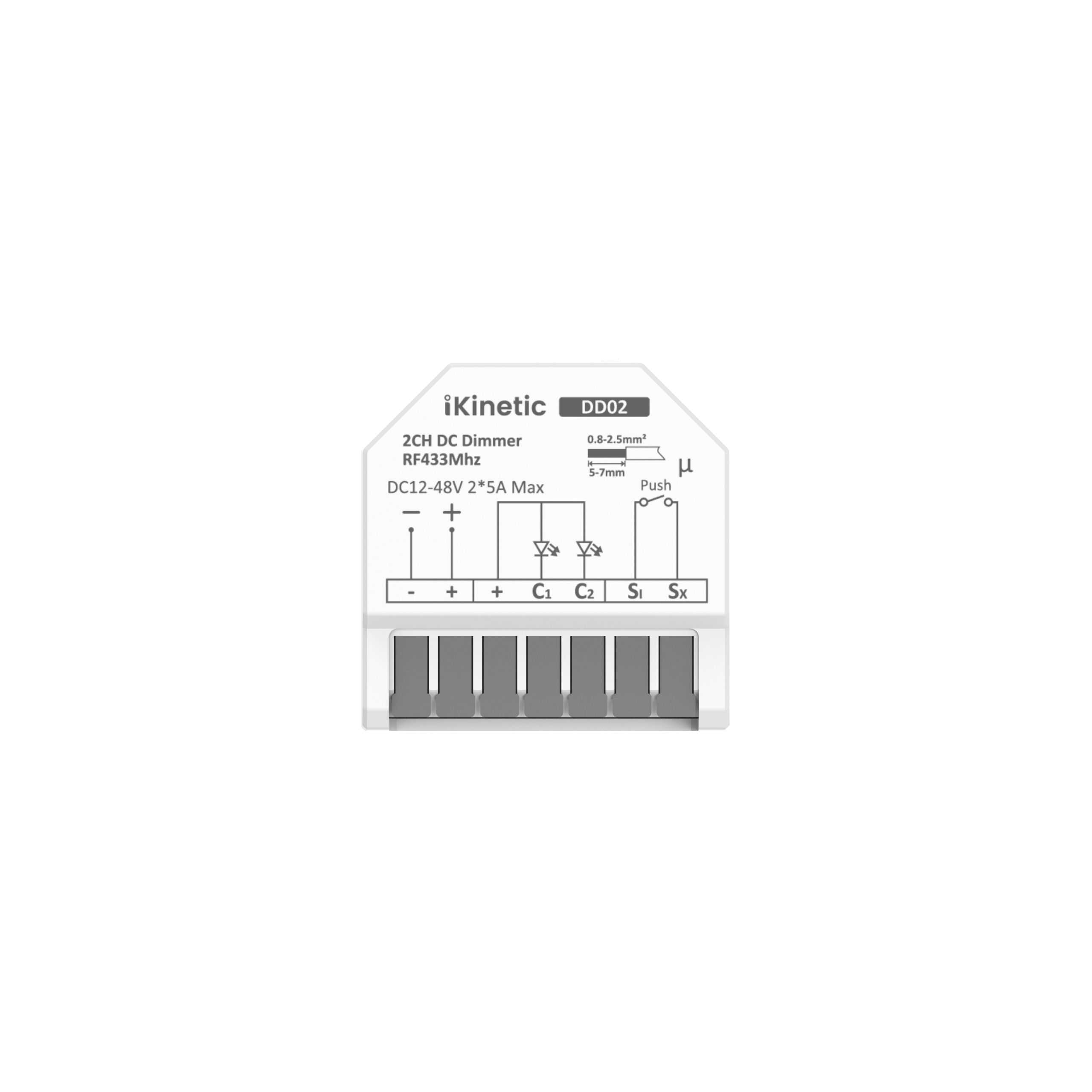

DD02 Series (CCT / Dual Channel)
Standard RF
2 Channels. CCT or Dual Dim.
ControlRF 433MHz
Output2CH x 5A
Tuya WiFi
Smart CCT Control. 2x5A.
ControlRF + Tuya WiFi
Output2CH x 5A
Matter WiFi
Matter Certified. 2x5A.
ControlRF + Matter WiFi
Output2CH x 5A
Engineering Highlights
4KHz High PWM
High frequency 4KHz PWM ensures smooth, flicker-free dimming for video and eye comfort.
12V-48V Input
Supports a wide range of DC LED strips including 12V, 24V, 36V, and 48V systems.
Push Dimming
External push switch terminal allows for manual dimming control alongside smart apps.
High Capacity
DD01 supports up to 8A single channel load. DD02 supports 2 channels of 5A each.
Detailed Specifications
DD01 Series (Single Color / 8A)
Channel1 Channel
Input Voltage12V-48V DC
Output CurrentMax 8A
Load Power96W/192W/384W (12/24/48V)
Dimensions42 x 42 x 16.5 mm
HousingUL 94-V0 PC
PWM Frequency4KHz
WiringScrew-free Terminal
ModelsDD01, DD01-WF, DD01-MW
ProtocolsRF433, Tuya, Matter
Push DimSupported
Warranty5 Years
DD02 Series (CCT / Dual Channel / 2x5A)
Channel2 Channels
Input Voltage12V-48V DC
Output CurrentMax 2x 5A
Load Power120W/240W/480W (12/24/48V)
Dimensions42 x 42 x 16.5 mm
HousingUL 94-V0 PC
PWM Frequency4KHz
WiringScrew-free Terminal
ModelsDD02, DD02-WF, DD02-MW
ProtocolsRF433, Tuya, Matter
Push DimSupported
Warranty5 Years
