Fits Inside Your Wall:

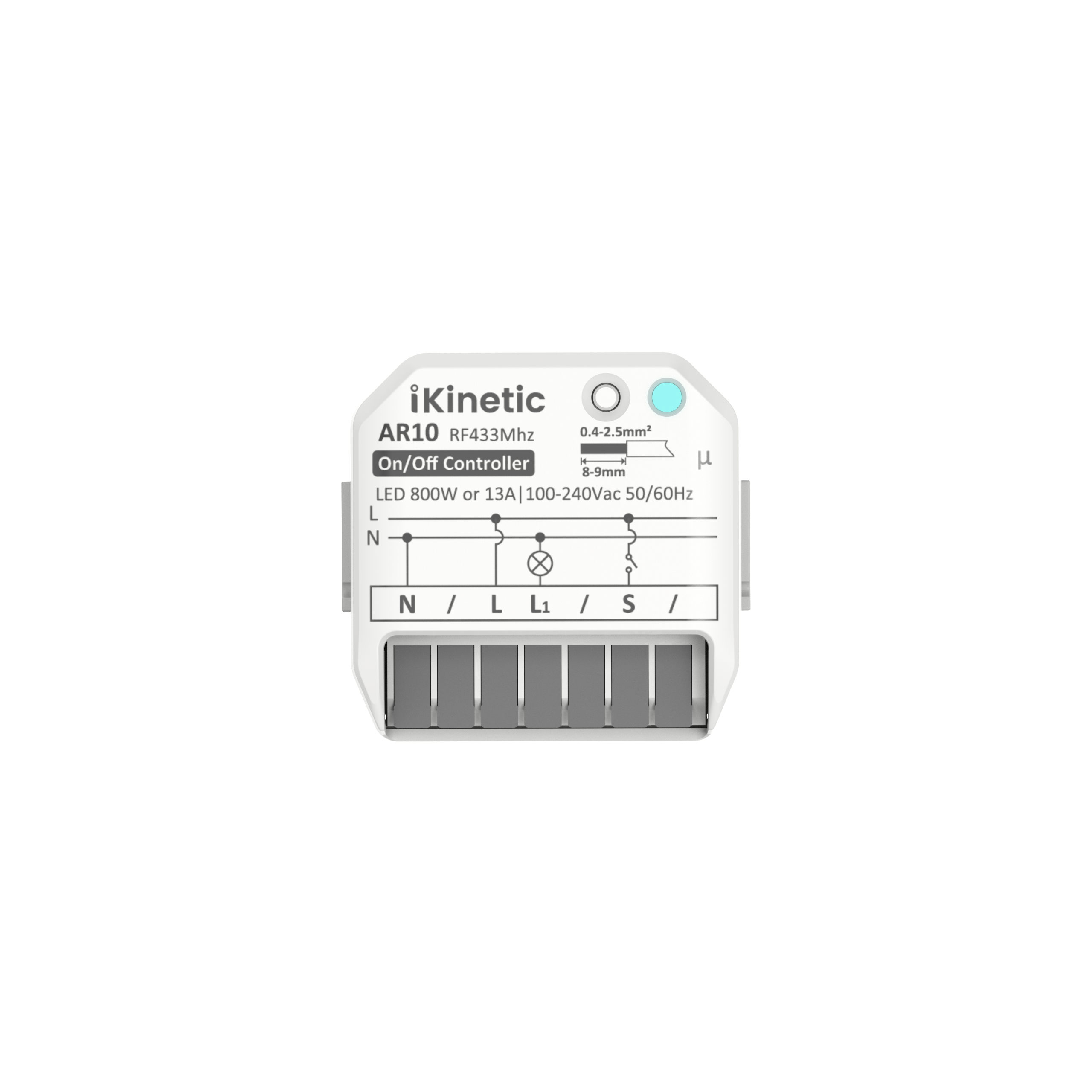

Mini AC Controller
Part of the AC Standard On/Off Series. A 13A controller engineered for the standard switch box. Supports traditional wired rocker/push switches and modern wireless control simultaneously.
Select Your Connectivity
Standard RF
Encrypted RF 433MHz. Works with Kinetic Switches.
Tuya WiFi + RF
Direct App control. Works with Alexa & Google Home.
Matter WiFi + RF
Ultimate compatibility. Apple, Google, Alexa & SmartThings.
Engineering Highlights
Switch Box Ready
Miniaturized dimensions (44x50mm) fit perfectly inside standard electrical switch boxes behind the faceplate.
Wired Compatible
Retain your existing wall switches. Compatible with traditional rocker and push switches via the S1 terminal.
13A High Load
Robust 16A relay delivering 13A output current, easily handling 800W of LED load for most room applications.
Screw-free Install
Features quick-connect push-fit terminals for tool-free, secure wiring, ideal for confined spaces like switch boxes.
Detailed Specifications
General Parameters (All Models)
Protocol Specifications
AR10
- Type In-Wall On/Off Receiver
- Protocol RF 433MHz (Encrypted)
- Pairing iKinetic Kinetic Switches
- Wall Switch Compatible (Rocker/Push)
AR10-WF
- Protocol Tuya WiFi (2.4GHz)
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- App Support Tuya Smart, Smart Life, Alexa, Google Home, Yandex
AR10-MW
- Protocol Matter over WiFi
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- Ecosystem Apple Home, Google Home, Alexa, SmartThings, Tuya
* All smart receivers (WF/MW) also support RF 433MHz function.
* Matter version requires a compatible third-party border router/speaker.
