2-Channel In-Wall:
Mini AC Controller

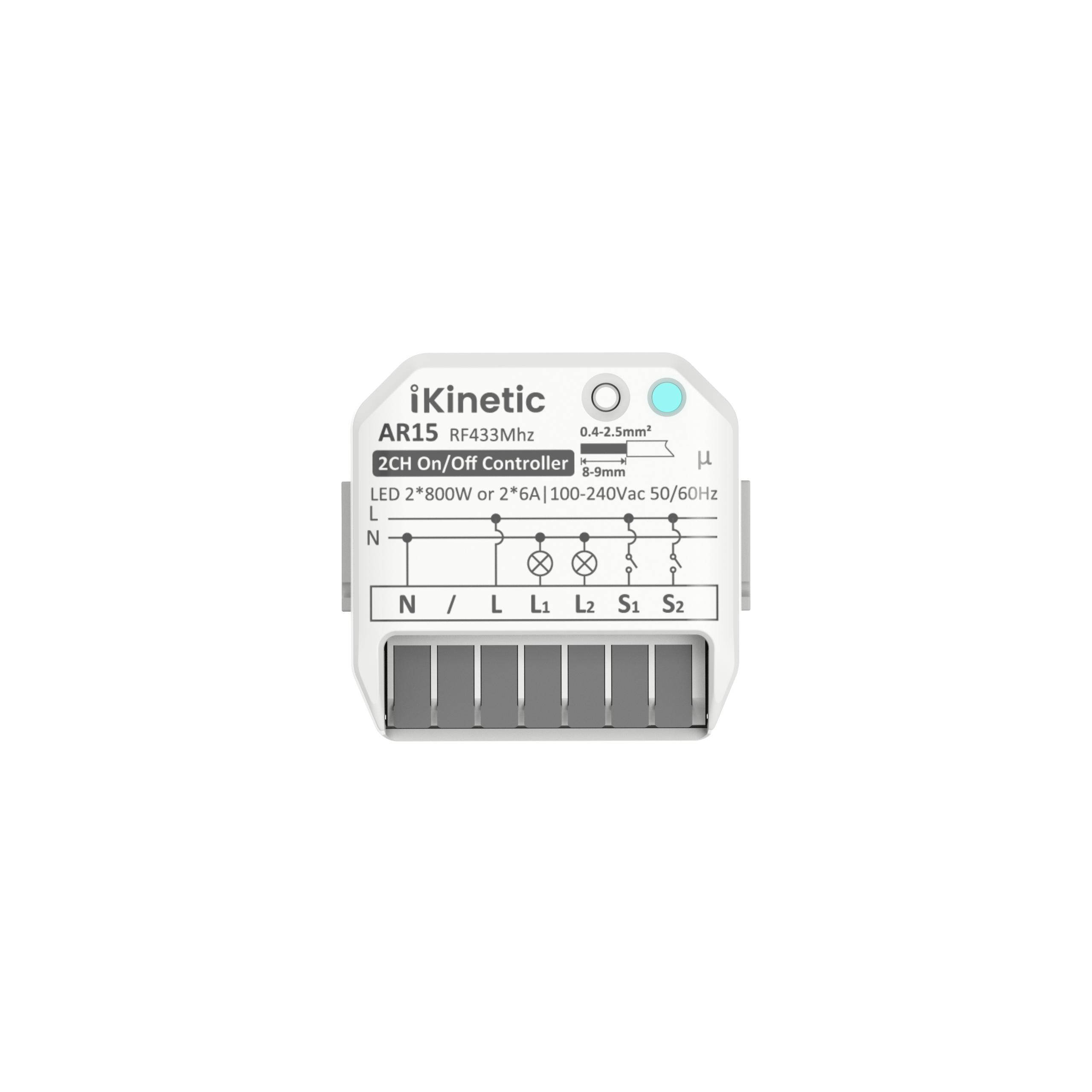

Part of the AC Standard On/Off Series. A compact 2-Channel (2x 6A) controller designed to fit inside standard switch boxes. Control two lighting zones independently via wireless apps or existing wired switches.
Select Your Connectivity
Standard RF (2CH)
Encrypted RF 433MHz. Independent control for 2 zones.
Tuya WiFi + RF (2CH)
Dual-channel App control. Works with Alexa & Google Home.
Matter WiFi + RF (2CH)
2-Way Matter Control. Apple, Google, Alexa & SmartThings.
Engineering Highlights
Switch Box Ready
Miniaturized dimensions (44x50mm) designed to fit behind existing 2-gang switches in standard electrical boxes.
Dual Wired Control
S1 and S2 terminals allow connection to 2-gang rocker or push switches for independent manual control.
2x 6A High Load
Two independent channels, each supporting up to 6A current (800W LED), maximizing control in minimal space.
Screw-free Install
Features quick-connect push-fit terminals for tool-free, secure wiring, crucial for limited space installation.
Detailed Specifications
General Parameters (All Models)
Protocol Specifications
AR15
- Type In-Wall 2CH Receiver
- Protocol RF 433MHz (Encrypted)
- Pairing iKinetic Kinetic Switches
- Wall Switch Compatible (S1/S2)
AR15-WF
- Protocol Tuya WiFi (2.4GHz)
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- App Support Tuya Smart, Smart Life, Alexa, Google Home, Yandex
AR15-MW
- Protocol Matter over WiFi
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- Ecosystem Apple Home, Google Home, Alexa, SmartThings, Tuya
* All smart receivers (WF/MW) also support RF 433MHz function.
* Matter version requires a compatible third-party border router/speaker.
