Double the Control:

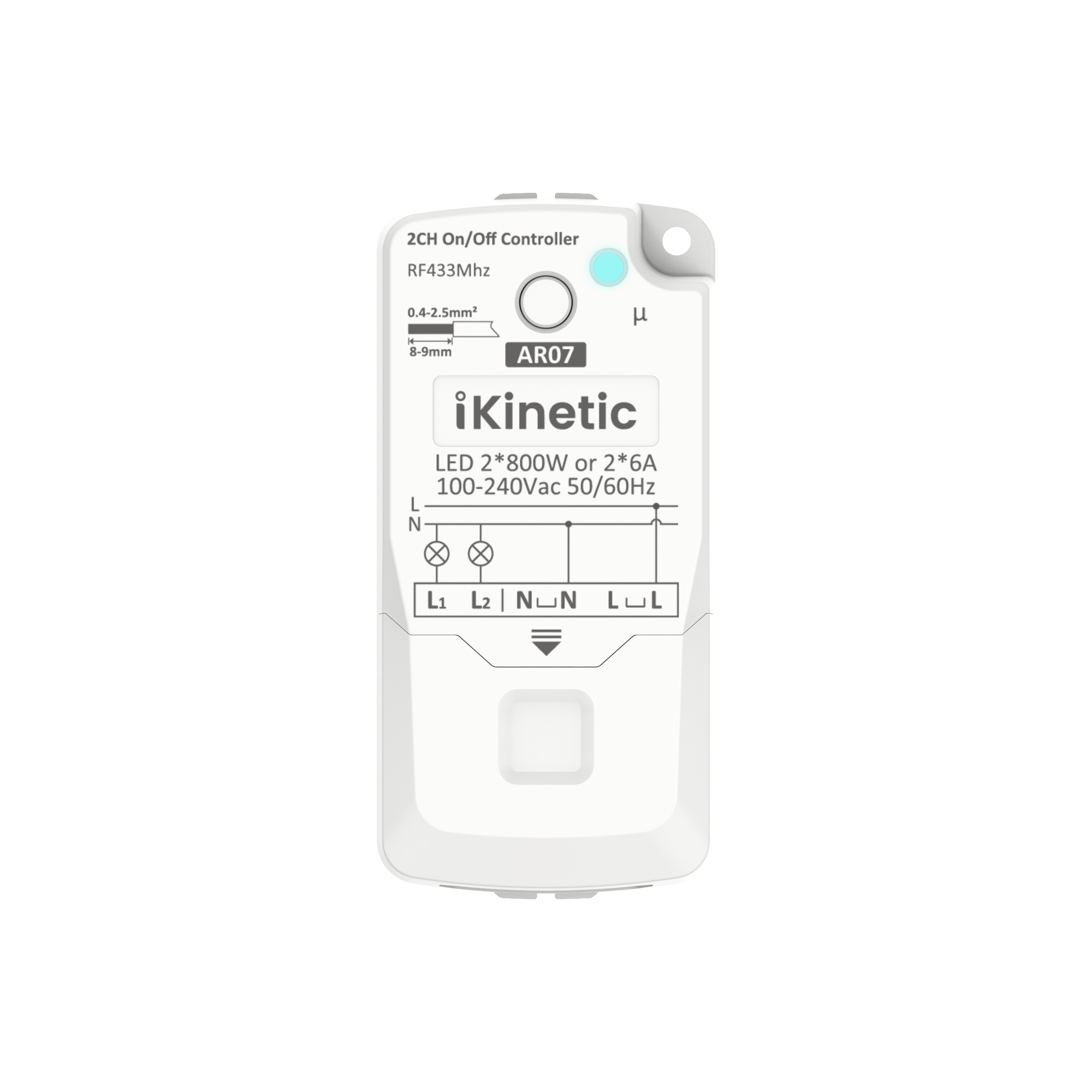

2-Channel AC Controller
Compact dual-channel efficiency. Independent control for two lighting circuits in one 80mm unit. 2x 6A Output capacity with encrypted RF security and screw-free installation.
Select Your Connectivity
Standard RF (2CH)
Encrypted RF 433MHz. Independent control for 2 zones.
Tuya WiFi + RF (2CH)
Dual-channel App control. Works with Alexa & Google Home.
Matter WiFi + RF (2CH)
2-Way Matter Control. Apple, Google, Alexa & SmartThings.
Engineering Highlights
Dual Channel
Two independent relays in one compact unit. Control two separate lighting zones without extra hardware.
Screw-free Install
Revolutionary screw-free push-fit terminals allow for fast, tool-free installation, reducing wiring time.
Over-ceiling Ready
Standard 80mm form factor. Perfect for hiding in ceiling voids or junction boxes for a clean aesthetic.
Encrypted RF
Advanced encrypted RF transmission for security. Supports smart interactive control and power-cut memory.
Detailed Specifications
General Parameters (All Models)
Protocol Specifications
AR07
- Type 2CH Standard Receiver
- Protocol RF 433MHz (Encrypted)
- Pairing iKinetic Kinetic Switches
- Wall Switch Not Compatible
AR07-WF
- Protocol Tuya WiFi (2.4GHz)
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- App Support Tuya Smart, Smart Life, Alexa, Google Home, Yandex
AR07-MW
- Protocol Matter over WiFi
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- Ecosystem Apple Home, Google Home, Alexa, SmartThings, Tuya
* All smart receivers (WF/MW) also support RF 433MHz function.
* Matter version requires a compatible third-party border router/speaker.
