Smart CCT Innovation:

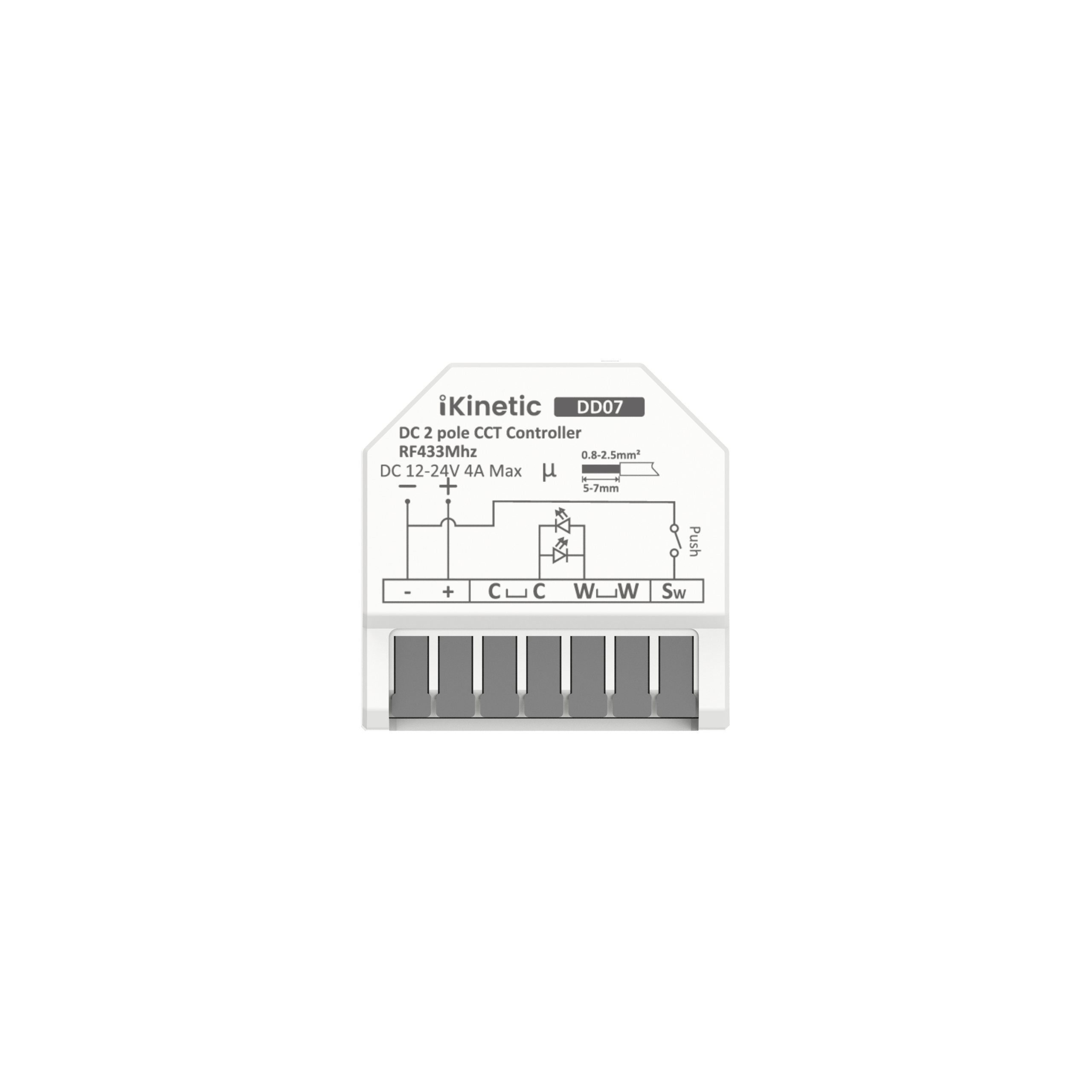

2-Wire DC Controller
Unique 2-Wire Tunable White technology. Supports 12V-24V DC LED strips with Max 4A output. Seamlessly adjusts color temperature (2700K-6500K) using standard 2-core cabling.
Select Your Connectivity
Standard RF
Encrypted RF 433MHz. Simple, reliable local control.
Tuya WiFi + RF
Direct App control. Works with Alexa & Google Home.
Matter WiFi + RF
Ultimate compatibility. Apple, Google, Alexa & SmartThings.
Engineering Highlights
2-Wire Technology
Innovative design allows Tunable White (CCT) control over just 2 wires, perfect for retrofitting existing 2-core installations.
Tunable White
Adjust color temperature from warm 2700K to cool 6500K with logarithmic dimming, creating the perfect ambiance.
12V-24V Input
Optimized for standard 12V and 24V LED systems, delivering up to 96W of power control at 24V.
Push Button Ready
Supports standard push-button switches for local dimming and CCT adjustment alongside smart wireless control.
Detailed Specifications
General Parameters (All Models)
Protocol Specifications
DD07
- Type CCT Receiver (2-Wire)
- Protocol RF 433MHz (Encrypted)
- Pairing iKinetic Kinetic Switches
- Wired Switch Push Button Support
DD07-WF
- Protocol Tuya WiFi (2.4GHz)
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- App Support Tuya Smart, Smart Life, Alexa, Google Home
DD07-MW
- Protocol Matter over WiFi
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- Ecosystem Apple Home, Google Home, Alexa, SmartThings
* All smart receivers (WF/MW) also support RF 433MHz function.
* Max load wattage depends on voltage (e.g., 12V@4A=48W, 24V@4A=96W).
