Full Spectrum Color:

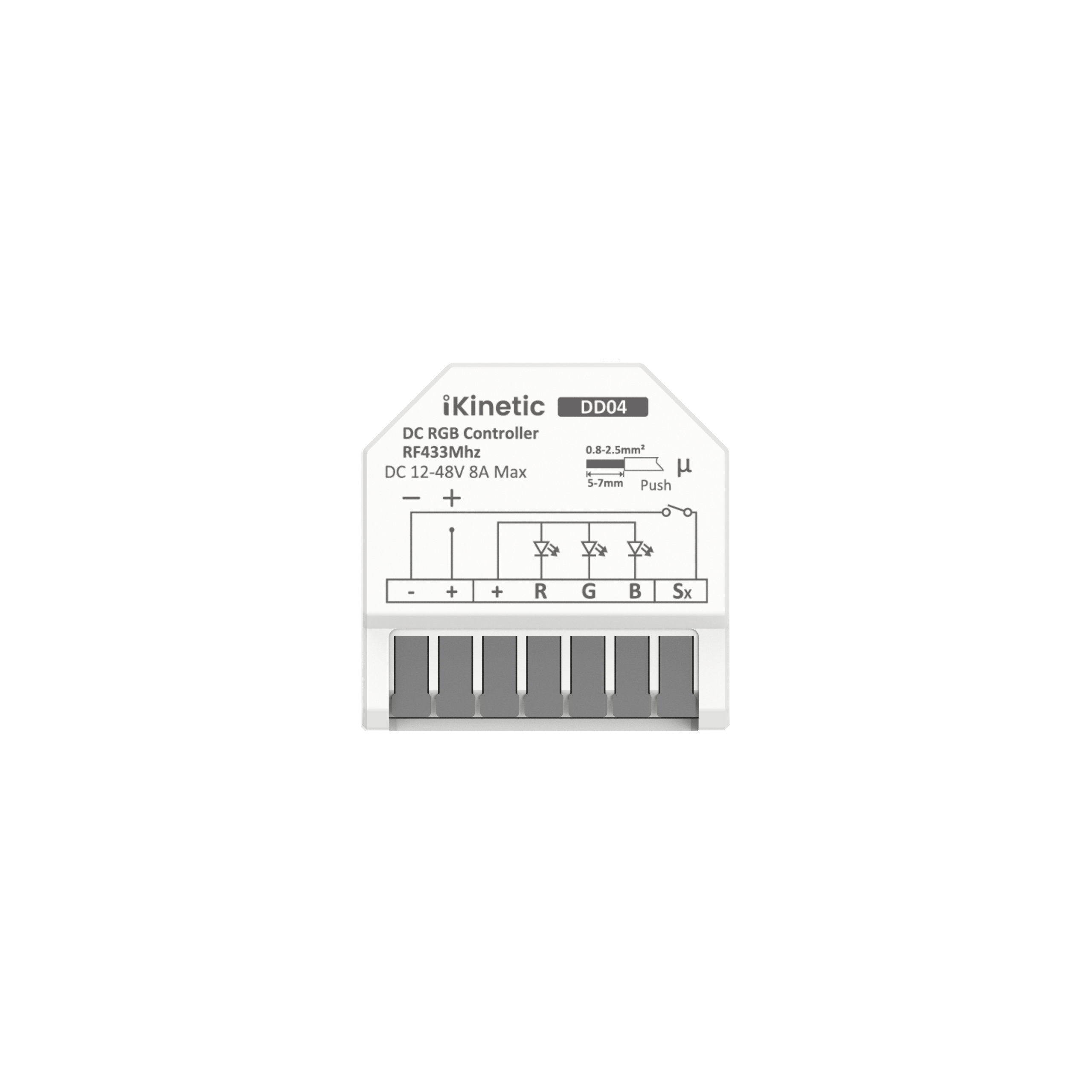

RGB DC Controller
Vibrant RGB Color Control with high-capacity 8A total output. Designed for 12V-48V DC LED strips. Supports seamless integration with RF, Tuya, and Matter ecosystems for ultimate flexibility.
Select Your Connectivity
Standard RF
Encrypted RF 433MHz. Simple, reliable local control.
Tuya WiFi + RF
Direct App control. Works with Alexa & Google Home.
Matter WiFi + RF
Ultimate compatibility. Apple, Google, Alexa & SmartThings.
Engineering Highlights
3-Channel RGB
Dedicated Red, Green, and Blue channels allow for mixing millions of colors to create dynamic lighting scenes.
12V-48V Input
Wide input voltage range supports various LED strips, delivering up to 384W of power control at 48V.
Logarithmic Dimming
0.1-100% logarithmic dimming curve ensures smooth, flicker-free brightness transitions for optimal visual comfort.
Push Button Ready
Supports standard push-button switches for local dimming and RGB color cycling alongside smart control.
Detailed Specifications
General Parameters (All Models)
Protocol Specifications
DD04
- Type RGB Receiver
- Protocol RF 433MHz (Encrypted)
- Pairing iKinetic Kinetic Switches
- Wired Switch Push Button Support
DD04-WF
- Protocol Tuya WiFi (2.4GHz)
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- App Support Tuya Smart, Smart Life, Alexa, Google Home
DD04-MW
- Protocol Matter over WiFi
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- Ecosystem Apple Home, Google Home, Alexa, SmartThings
* All smart receivers (WF/MW) also support RF 433MHz function.
* Max load wattage depends on voltage (e.g., 12V@8A=96W, 48V@8A=384W).
