Commercial Grade:
0-10V Dimmer
The ultimate solution for commercial lighting control. A powerful 0-10V / 1-10V Dimmer with an integrated 16A relay for complete power shut-off. Perfect for controlling LED panel lights, high bays, and architectural linear lighting.
Select Your Connectivity
Standard RF Dimmer
RF 433MHz 0-10V Control. Reliable wireless dimming.
Tuya WiFi + RF Dimmer
Smart 0-10V Dimming. App + Voice Control for drivers.
Matter WiFi + RF Dimmer
Matter 0-10V Control. Integrate drivers into Apple Home.
Engineering Highlights
0-10V Signal
Provides a standard 0-10V dimming signal (up to 70mA) to control compatible LED drivers, ensuring smooth, wide-range brightness adjustment.
Integrated Relay
Built-in 16A relay physically cuts power to the driver at 0% dimming, eliminating ghosting and ensuring complete turn-off.
Push Dimming
Supports wired Push switch connection (S terminal) for manual on/off and dimming control, alongside smart/RF control.
Screw-free Install
Compact design with quick-connect push-fit terminals. Easy to install above ceilings or in electrical boxes.
Detailed Specifications
General Parameters (All Models)
Protocol Specifications
AR31

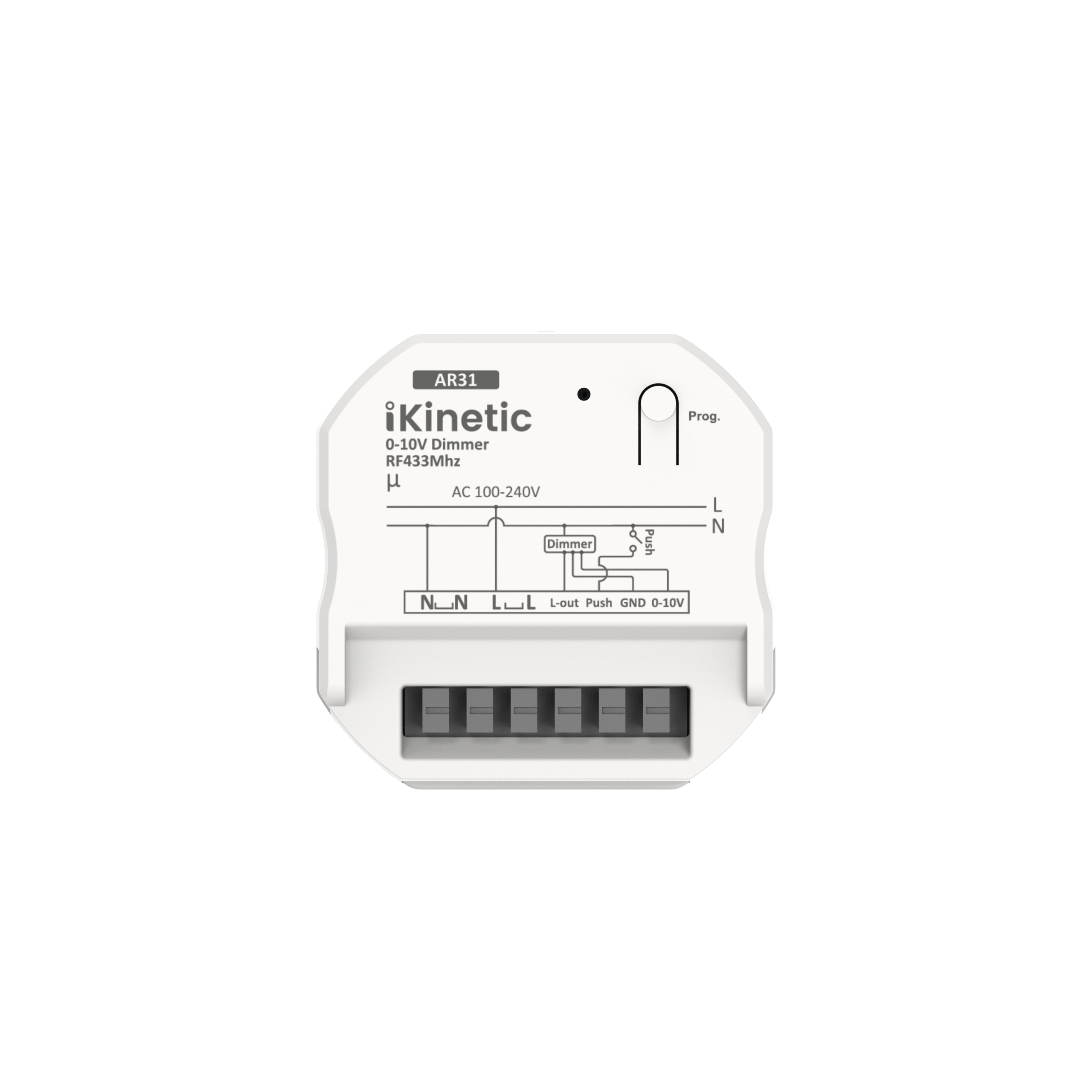

- Type 0-10V Dimmer Controller
- Protocol RF 433MHz (Encrypted)
- Pairing iKinetic Kinetic Switches
- Wall Switch Push Button (Dimming)
AR31-WF
- Protocol Tuya WiFi (2.4GHz)
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- App Support Tuya Smart, Smart Life, Alexa, Google Home, Yandex
AR31-MW
- Protocol Matter over WiFi
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- Ecosystem Apple Home, Google Home, Alexa, SmartThings, Tuya
* All smart receivers (WF/MW) also support RF 433MHz function.
* Matter version requires a compatible third-party border router/speaker.
