Ultimate 5-in-1 Control:

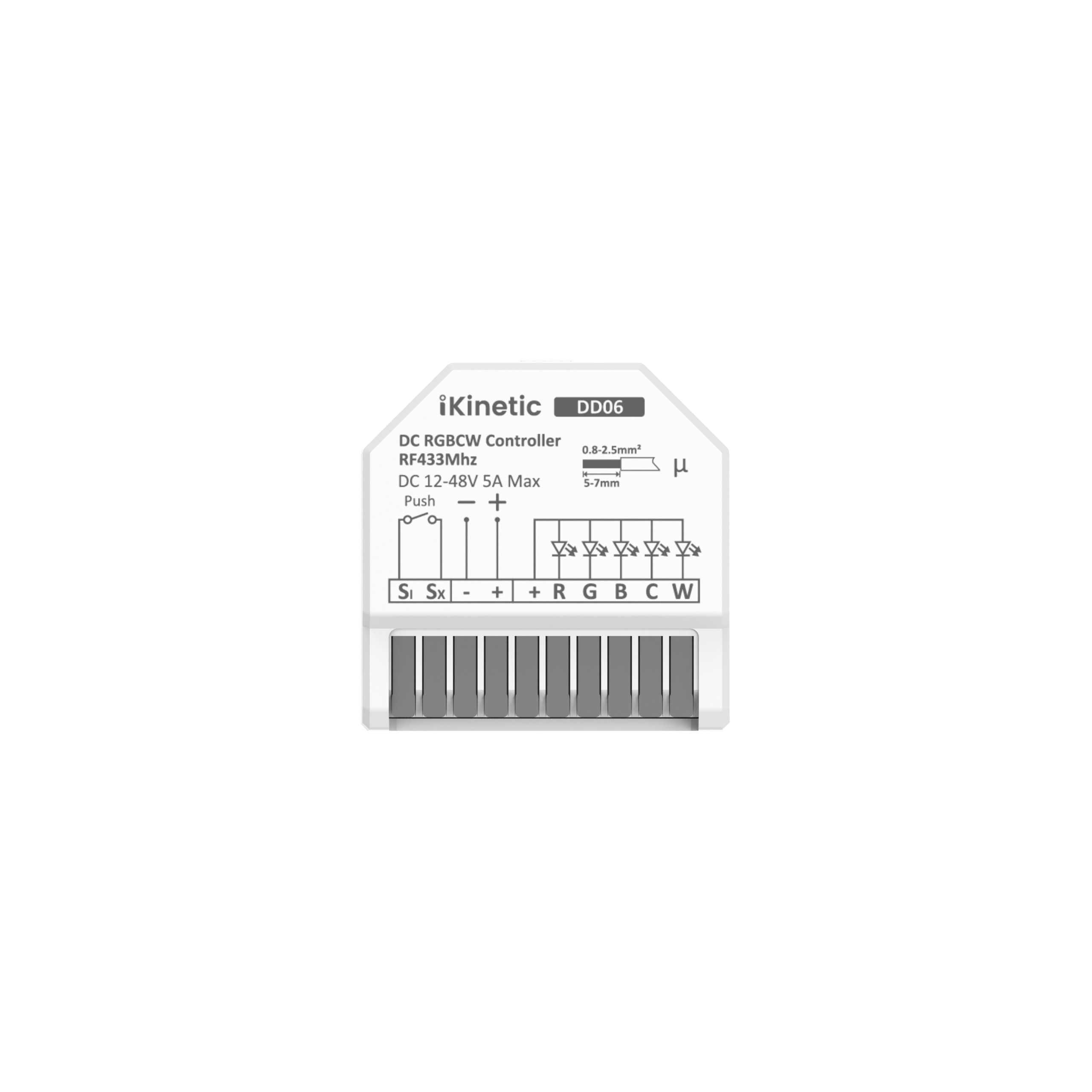

RGBCW DC Controller
Complete 5-Channel RGBCW Control offering both full-spectrum color and tunable white (CCT). Max 5A shared output. Designed for 12V-48V DC LED strips. The all-in-one solution for dynamic lighting.
Select Your Connectivity
Standard RF
Encrypted RF 433MHz. Simple, reliable local control.
Tuya WiFi + RF
Direct App control. Works with Alexa & Google Home.
Matter WiFi + RF
Ultimate compatibility. Apple, Google, Alexa & SmartThings.
Engineering Highlights
5-Channel RGBCW
Full 5-in-1 control allows standard RGB mixing PLUS dedicated Tunable White (CCT) control for any mood.
12V-48V Input
Wide voltage input range supports a vast array of LED strips, from standard 12V to high-voltage 48V systems.
Logarithmic Dimming
0.1-100% logarithmic dimming curve ensures smooth, flicker-free brightness transitions for optimal visual comfort.
Push Button Ready
Supports standard push-button switches for local control over dimming, CCT tuning, and RGB color changing.
Detailed Specifications
General Parameters (All Models)
Protocol Specifications
DD06
- Type RGBCW Receiver
- Protocol RF 433MHz (Encrypted)
- Pairing iKinetic Kinetic Switches
- Wired Switch Push Button Support
DD06-WF
- Protocol Tuya WiFi (2.4GHz)
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- App Support Tuya Smart, Smart Life, Alexa, Google Home
DD06-MW
- Protocol Matter over WiFi
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- Ecosystem Apple Home, Google Home, Alexa, SmartThings
* All smart receivers (WF/MW) also support RF 433MHz function.
* Max load wattage depends on voltage (e.g., 12V@5A=60W, 48V@5A=240W).
