One Device, All Modes:

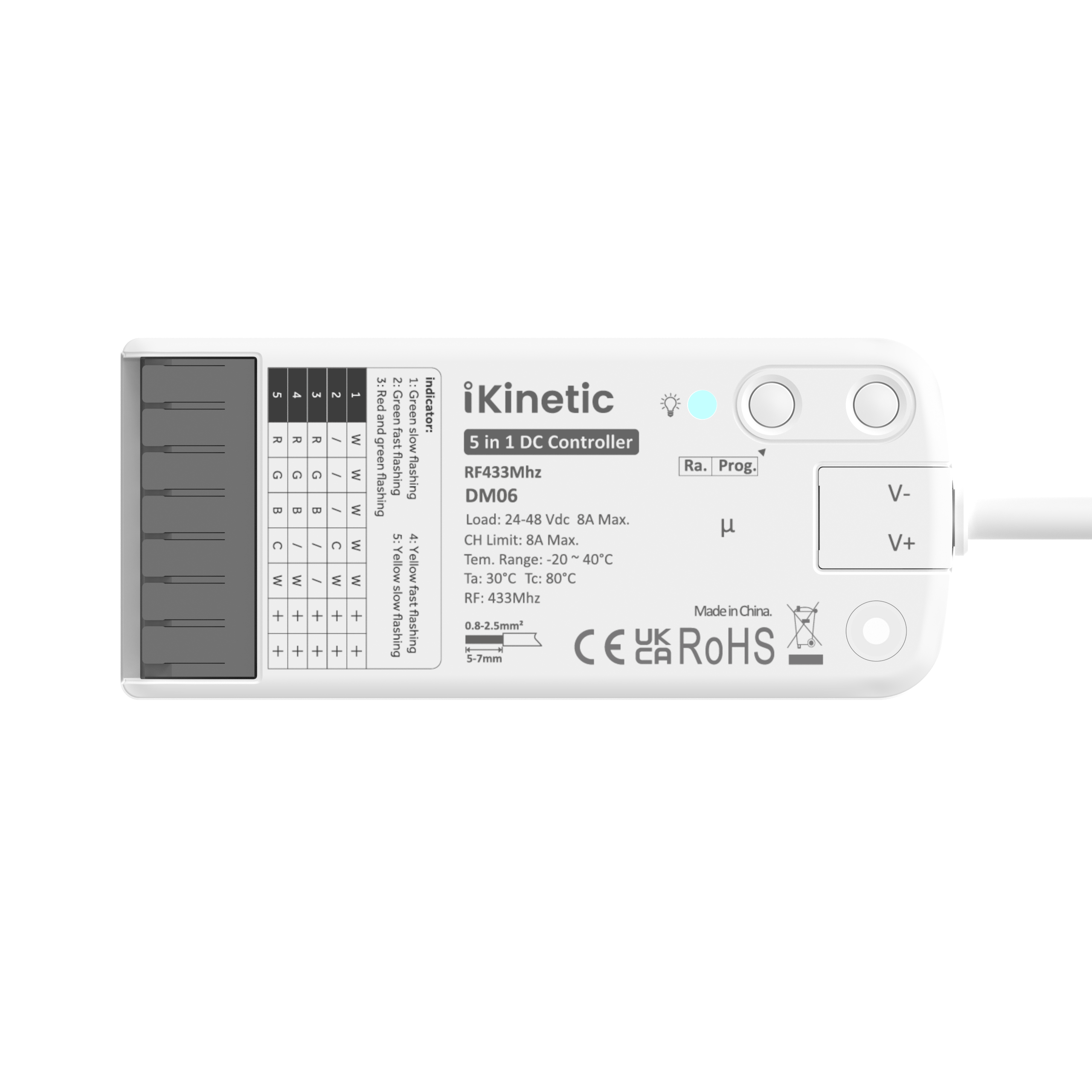

5-in-1 DC Controller
The ultimate universal controller. Configurable as Dimmer, CCT, RGB, RGBW, or RGBCW. Features high-power 8A Max Output for demanding projects. Compatible with 12V-48V DC systems.
Select Your Connectivity
Standard RF
Encrypted RF 433MHz. Works with all iKinetic kinetic switches.
Tuya WiFi + RF
Tuya Smart Life App. Voice control via Alexa & Google.
Matter WiFi + RF
Future-proof. Apple Home, Google, Alexa & SmartThings.
Engineering Highlights
5-in-1 Versatility
Configurable for Dimmer, CCT, RGB, RGBW, or RGBCW modes via key press. LED indicators (Green/Red/Yellow) confirm current mode.
High Capacity 8A
Robust 8A max output drives high-power strips. Handles up to 384W loads at 48V, perfect for long-run installations.
Min. Brightness
Adjustable minimum brightness (0.1% to 5%) prevents flickering at low levels. 100% logarithmic dimming for smooth fades.
Auto-Memory
Power cut memory function restores the last state (color and brightness) automatically after a power outage.
Detailed Specifications
General Parameters (All Models)
Protocol Specifications
DM06
- Type 5-in-1 Receiver
- Protocol RF 433MHz (Encrypted)
- Mode Setting Key Press (LED Indicator)
- Wired Switch Push Button Support
DM06-WF
- Protocol Tuya WiFi (2.4GHz)
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- App Support Tuya Smart, Smart Life, Alexa, Google Home
DM06-MW
- Protocol Matter over WiFi
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- Ecosystem Apple Home, Google Home, Alexa, SmartThings
* All smart receivers (WF/MW) also support RF 433MHz function.
* Max load wattage depends on voltage (e.g., 24V@8A=192W, 48V@8A=384W).
