Volt-Free Control:

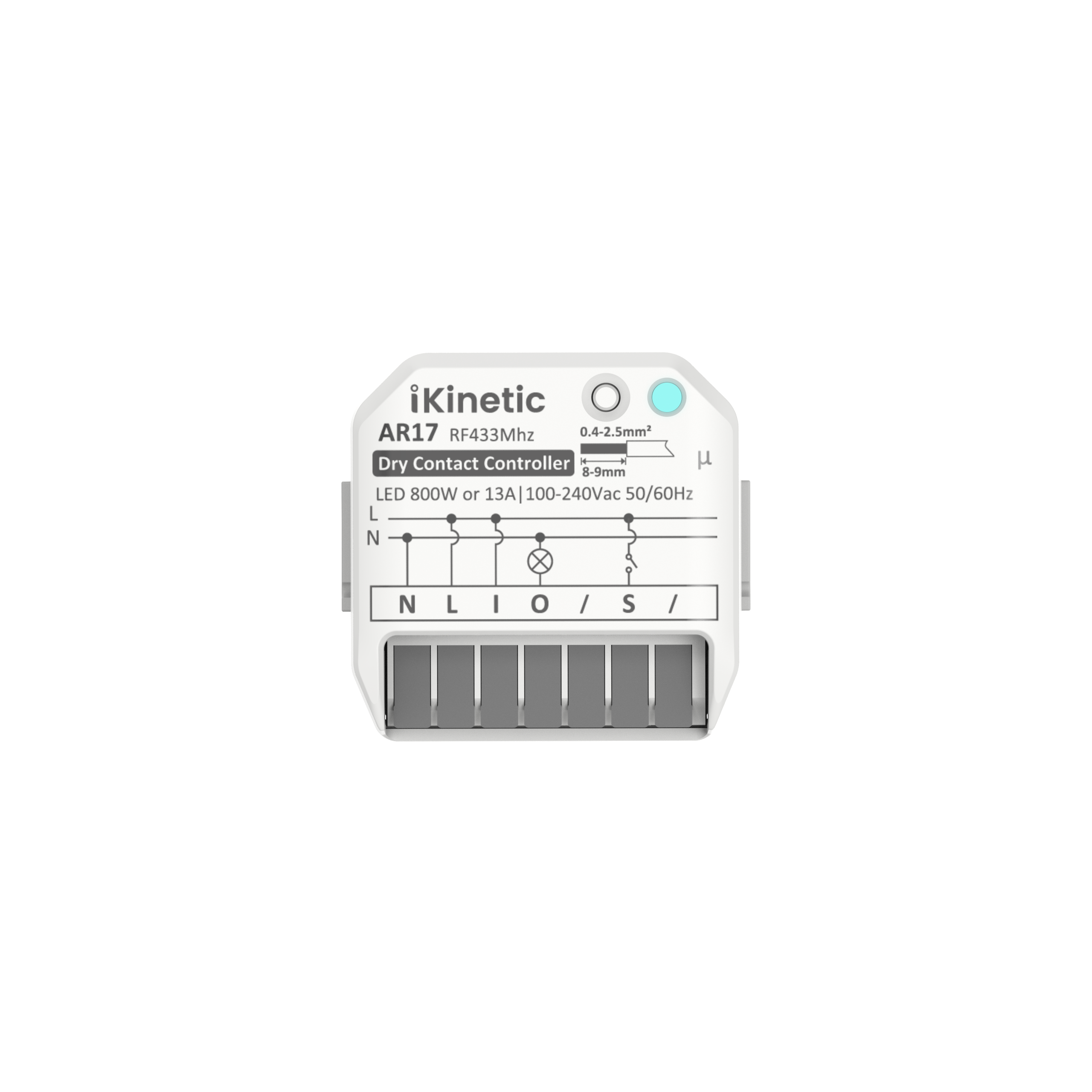

Dry Contact Controller
The ultimate versatile solution. A compact Dry Contact (Potential-Free) controller that separates power from control. Ideal for garage doors, gates, DC 12-24V LED loads, or standard AC lighting.
Select Your Connectivity
Standard RF
Encrypted RF 433MHz. Direct pairing with kinetic switches.
Tuya WiFi + RF
Smart App control for garage/gates via Tuya/Alexa.
Matter WiFi + RF
Integrate potential-free control into Apple Home/Google.
Engineering Highlights
Dry Contact (I/O)
Output is isolated from mains power. Perfect for triggering gate motors, boilers, or low-voltage DC LED circuits (12-24V).
Switch Box Ready
Same compact 44mm footprint as the AR10, designed to fit seamlessly inside standard electrical switch boxes.
13A High Load
Despite being dry contact, the relay can handle high currents up to 13A (16A Relay), suitable for heavy-duty switching.
Wired & Wireless
Supports external push button or rocker switches via the 'S' terminal for local manual control alongside smart control.
Detailed Specifications
General Parameters (All Models)
Protocol Specifications
AR17
- Type Dry Contact Receiver
- Protocol RF 433MHz (Encrypted)
- Pairing iKinetic Kinetic Switches
- Wall Switch Compatible (Rocker/Push)
AR17-WF
- Protocol Tuya WiFi (2.4GHz)
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- App Support Tuya Smart, Smart Life, Alexa, Google Home, Yandex
AR17-MW
- Protocol Matter over WiFi
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- Ecosystem Apple Home, Google Home, Alexa, SmartThings, Tuya
* All smart receivers (WF/MW) also support RF 433MHz function.
* Matter version requires a compatible third-party border router/speaker.
