The Invisible Power:

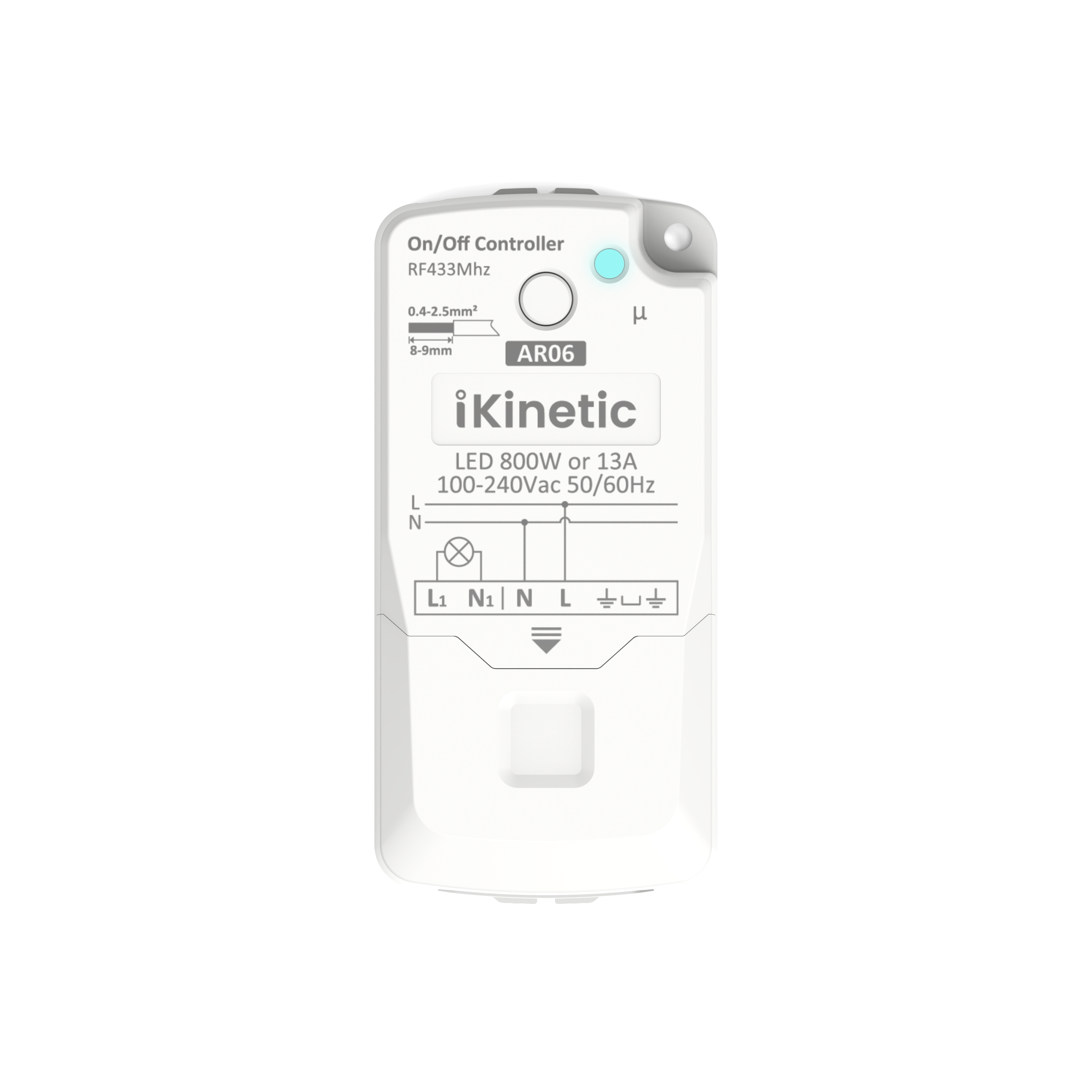

AC Standard Controller
Engineered for invisibility. A compact 13A wireless receiver designed for secure, over-ceiling installation. Available in three connectivity versions to match your ecosystem.
Select Your Connectivity
Standard RF
Encrypted RF 433MHz. Simple, reliable, direct pairing.
Tuya WiFi + RF
Direct App control. Works with Alexa & Google Home.
Matter WiFi + RF
Ultimate compatibility. Apple, Google, Alexa & SmartThings.
Engineering Highlights
Screw-free Install
Revolutionary screw-free push-fit terminals allow for fast, tool-free installation, significantly reducing wiring time for electricians.
Over-ceiling Ready
Compact 80mm form factor specifically designed for secure installation in ceiling voids or junction boxes, keeping the aesthetics clean.
13A High Load
Powerful 16A relay with 13A output supports up to 800W LED load, making it suitable for both residential and demanding commercial lighting.
Encrypted RF
Advanced encrypted RF transmission ensures anti-interference and security. Smart + RF interactive control with power-cut memory function.
Detailed Specifications
General Parameters (All Models)
Protocol Specifications
AR06
- Type Standard On/Off Receiver
- Protocol RF 433MHz (Encrypted)
- Pairing iKinetic Kinetic Switches
- Wall Switch Not Compatible
AR06-WF
- Protocol Tuya WiFi (2.4GHz)
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- App Support Tuya Smart, Smart Life, Alexa, Google Home, Yandex
AR06-MW
- Protocol Matter over WiFi
- WiFi Security WEP, WPA/WPA2/WPA3
- Frequency 2.400-2.480GHz
- Ecosystem Apple Home, Google Home, Alexa, SmartThings, Tuya
* All smart receivers (WF/MW) also support RF 433MHz function.
* Matter version requires a compatible third-party border router/speaker.
